Chartwell Green French Doors with Side Panels – Build Your Own

£835.00 Inc. Vat

Size Requirements - Please include the cill in your overall height
Side Panel Requirements
Color Requirements
Door Configuration
Glazing requirements
Door Accessories
Additional Extra's
Glass Decoration

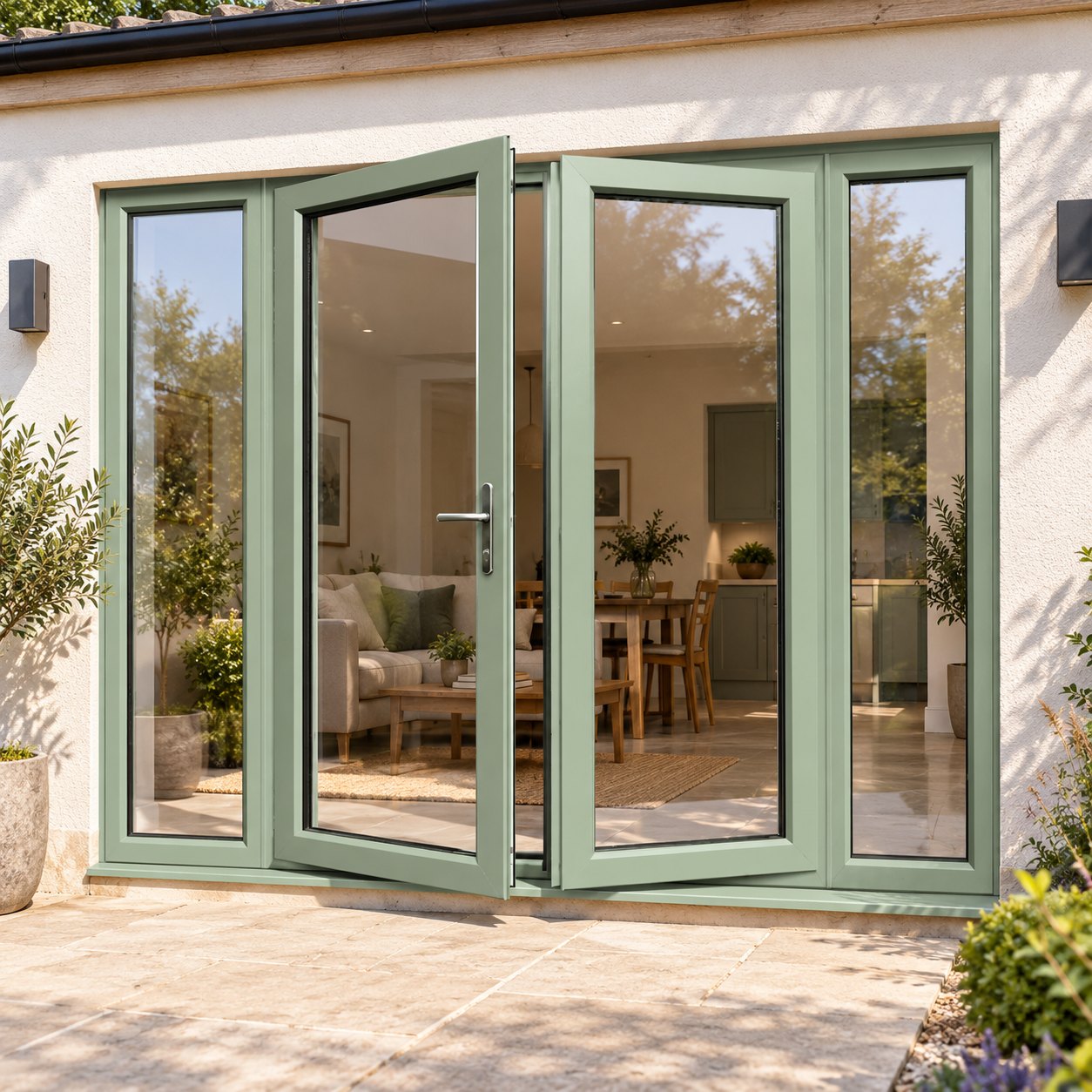

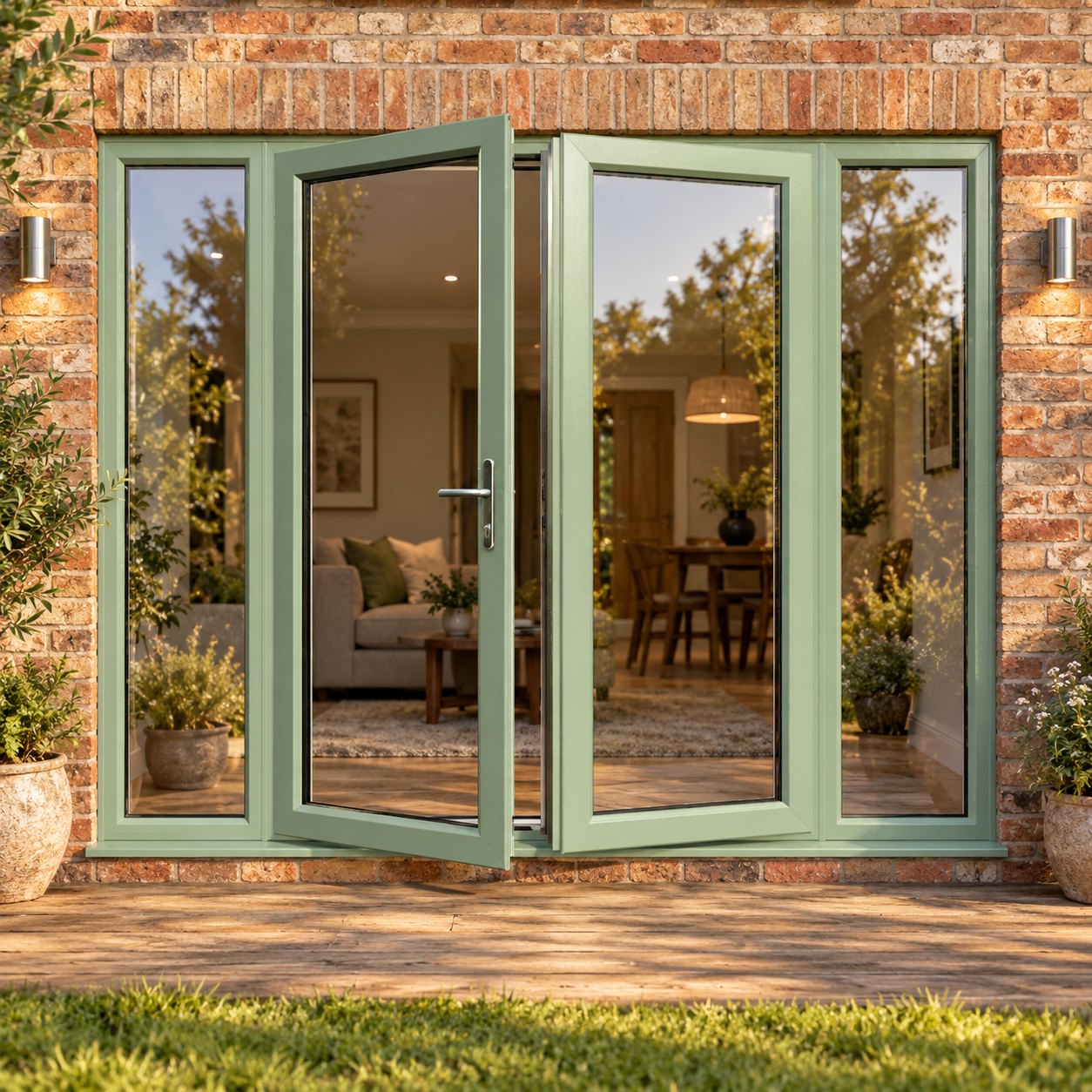

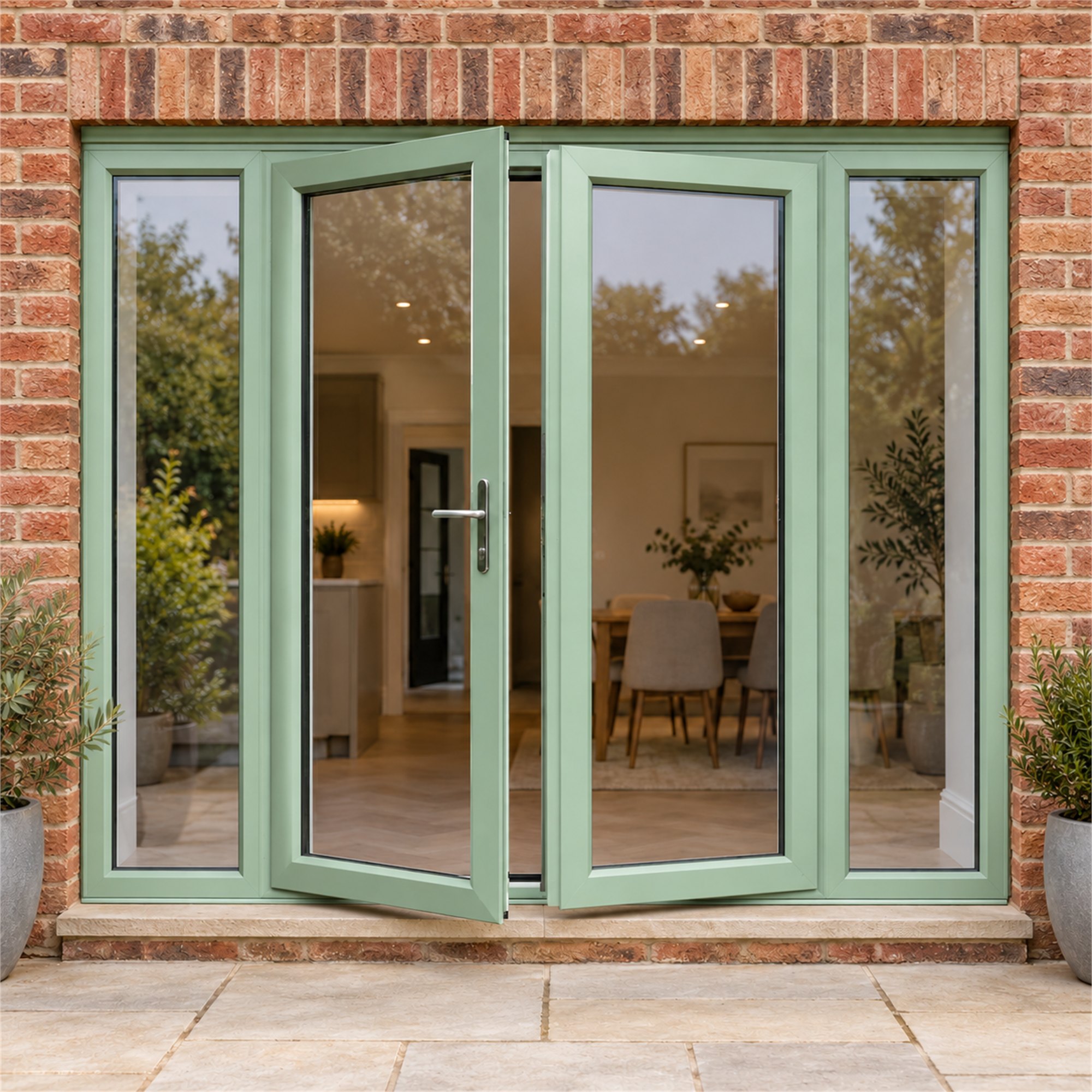

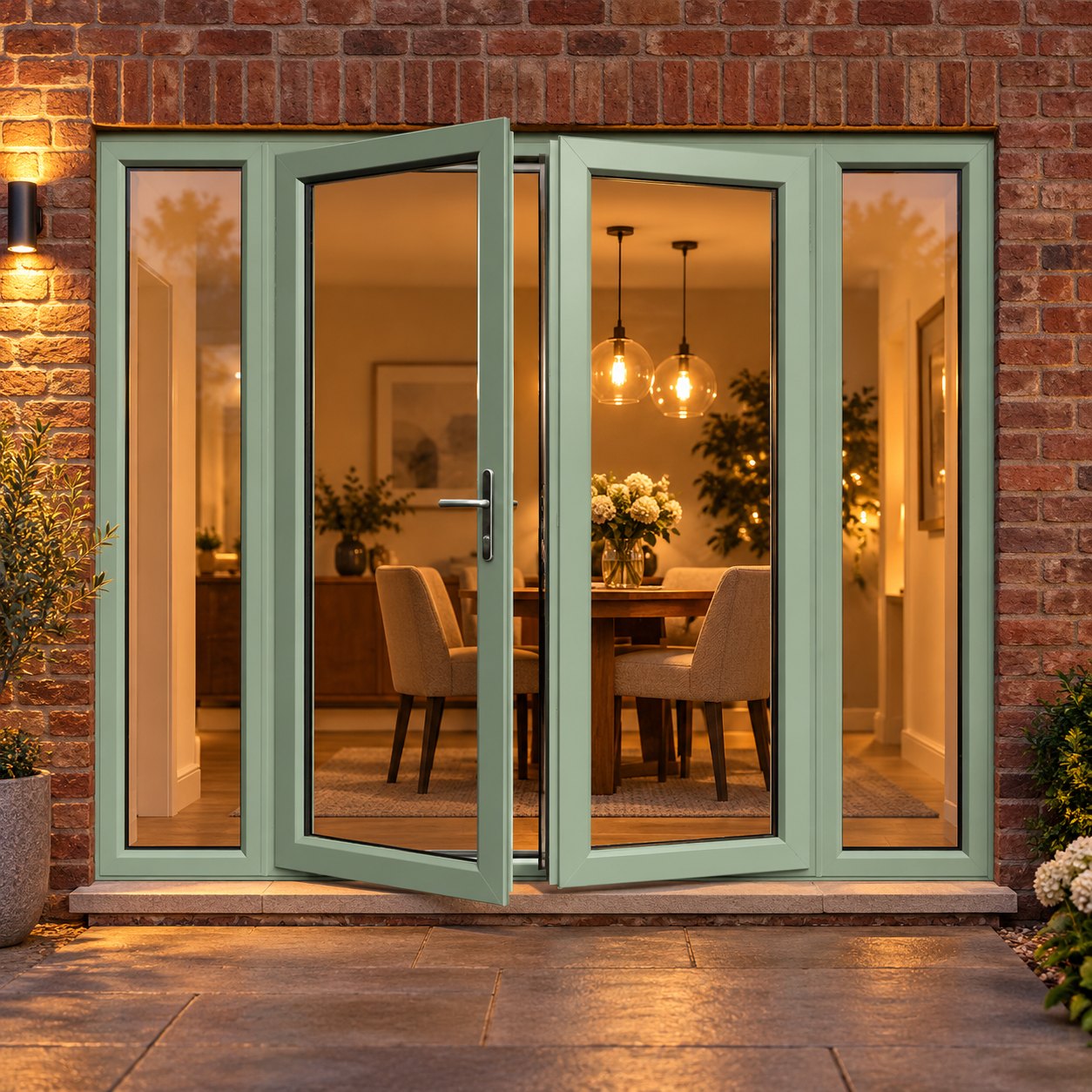

French Door with Sidepanel in Chartwell Green

Elevate your space with our stunning French Door with Sidepanel. Specifically designed for both interior and exterior use, these doors seamlessly blend style and functionality.

Product Specifications

  • Height: Made to Order
  • Frame Height: Made to Order
  • Thickness: 70 mm
  • Frame Depth: 70 mm
  • Material: uPVC
  • Frame Material: uPVC
  • Style: French doors
  • Number of Doors: 2
  • Opening Direction: As per selection
  • Glazing Type: Clear toughened double glazed
  • Includes: Frame, doors & hardware
  • Years Guaranteed: 10
  • Type: uPVC
  • Prehung: Not Flat Packed

Features & Benefits

First and foremost, enjoy advanced security with the industry-approved 7-point Yale Locking system. Additionally, this set includes three keys for your peace of mind.

Furthermore, each door boasts a galvanised steel internal core. This feature provides enhanced rigidity and security, ensuring lasting strength.

In addition, the stylish design incorporates three elegant colour-coded hinges, which create a sleek and modern appearance.

Moreover, experience energy efficiency thanks to the ready-glazed Low E toughened safety glass. This option not only helps lower your energy bills but also enhances your home’s comfort. The internal beading further improves security.

Finally, the complete package includes everything you need: a locking door, slave door, frame pack, cill pack, external handles, and six hinges.

Proudly made in the UK, this door set comes with a 10-year manufacturer’s warranty, which guarantees quality and durability.

Overall, transform your entryway with our French Doors with Sidepanels and enjoy the perfect blend of style, security, and efficiency.

Explore our other colors in French Doors with Sidepanels.

1 review for Chartwell Green French Doors with Side Panels – Build Your Own

  1. Stuart Halliday

    Stuart Halliday noted: ‘I love the Chartwell Green French Doors with Side Panels – Build Your Own! It’s stylish, durable, and worth every penny. Will definitely recommend to others.’

Only logged in customers who have purchased this product may leave a review.

Our fleet of vehicles are especially converted and designed to carry Windows, Doors and Glass by using a special wracking system meaning your items will arrive safe and sound.

We have a dedicated transport manager who, once your order is placed immediately books your delivery slot and ensures that your delivery happens on time.

We cover all the UK Mainland on a weekly basis. Please see the map below as to when we are in your area and when you could expect your delivery.

If you have any questions regarding your delivery please call our transport manager on +44 01302 248118 option 3.

All our deliveries are made between 7am – 7pm Monday – Friday. upon ordering you will be told your delivery date – this will not change unless we contact you – you will then receive a text the day before your delivery reminding you that your delivery is due the following day. On the day of delivery, you will get a text with a tracking link and an estimated 2 hour time window with live driver tracking.

Adding Frosting to your glass? We have multiple options available for you to choose from. Feel free to let us know your preferred glass style once you have selected the frosting option. If you are unsure please call us on +44 01302 248118 option 1. You will receive Stippoltye as standard if you have added frosted glass to your order.

How to Measure Windows and Doors

1. Use metric not imperial

The first rule of thumb is to make sure you take accurate measurements in millimetres not inches. This gives you a finer level of accuracy and means there’s no room for error if we have to convert the measurement to metric.

2. Measure the opening outside

So firstly step outside. You need to take height and width measurements for the brickwork opening. Bear in mind that the height measurements must be from underneath any existing removable windowsill. If your property is rendered, simply take off a little of the render and measure to the brickwork edge.

3. Measure brick to brick in at least three different places

Remember the opening may not be exactly square so take a minimum of three measurements – top, middle and bottom, for the height and the same again for the width. This means your window manufacturer can get an accurate view of the exact size of the space the finished product will be fitted into. The final width and height measurement the manufacturer will use is the smallest one.

Measuring the Height
Measuring the Width

4. Deduct 10mm (yes, really!)

This sounds like odd advice but you need to take off 10mm from the final height and width measurements. This is to allow for a small fitting allowance around the new frame and means the fitter can make sure the new window frame sits squarely when it’s in place. Any gaps are then fitted with spacers and filled to keep the frame in just the right position.

5. Never measure the old frame

This is a common error and certainly one to avoid. Ignore the old window frame – this is going because it is no longer suitable. Consider the fact that it may well have warped so the last thing you want to do is take measurements from it!

6. Be sure of your measurements

Make sure you check (and double-check) your measurements so you are 100% sure you have them correctly. This is important because we will not accept responsibility for incorrect measurements and you will still have to pay for a window that doesn’t fit. If you are unsure, consult a professional installer or builder and give yourself total peace of mind.

7. Cill measurement

Taking all the above information in to account, when inputting your measurements we require you to provide us your overall brick-to-brick measurement minus the 10mm fitting tolerance. We will automatically include the cill in to the measurements you provide us – pending you require one that is!

If you struggle, or you would like us to contact you for piece of mind, once your order is placed just leave a note at the checkout asking for a call back!

How to Measure Bay Windows

Square Bay windows consist of three sides and two 90 degree corner posts. The width (back span) will need to be measured internally from the existing frame edge to edge. Measure each side window internally and ensure they are the same from one edge of the frame to the other. The height will need to be measured externally brick to brick including any existing cill.

We will add 140mm to the external size for the two 90 degree corner posts which are 70mm square.

For example, if the internal width is 1800mm the external width including two 70mm corner posts will be 1940mm, see image below.

How to Measure Bay Windows

Bow windows are slightly more complicated than bays, consisting of two or more sides and shallower angles. The width (back span) will need to be measured internally from the existing frame edge to edge. Measure each individual window internally from one edge of the frame to the other. The projection of the bow will need to be measured internally from the inside back span of the window to the inside point of the window frame as below image. The height will need to be measured externally brick to brick including any existing cill.

Cill Information

A cill sits underneath the frame and is there to drain rain water away. If you have an existing Cill this would normally be replaced unless its concrete. Ours are 30mm high, and we offer three different sizes:

85mm – With a 15mm projection, this is used when the frame is fitted forward in the reveal

150mm – With an 80mm projection, this is the most commonly used size

180mm –With a 110mm projection, this is used when the frame is fitted further back in the reveal

IMPORTANT: Enter ‘overall’ sizes including add-ons and / or cill if required.
